|Power supply||Three phase, 380V/415V, 50/60Hz|
|Digital Inverter||Sensor less Vector Control|
|Speed||Electronic variable speed inverter|
|Material||SS 304L/316 wetted parts|
Vessel, Lifting and Vacuum Specifications

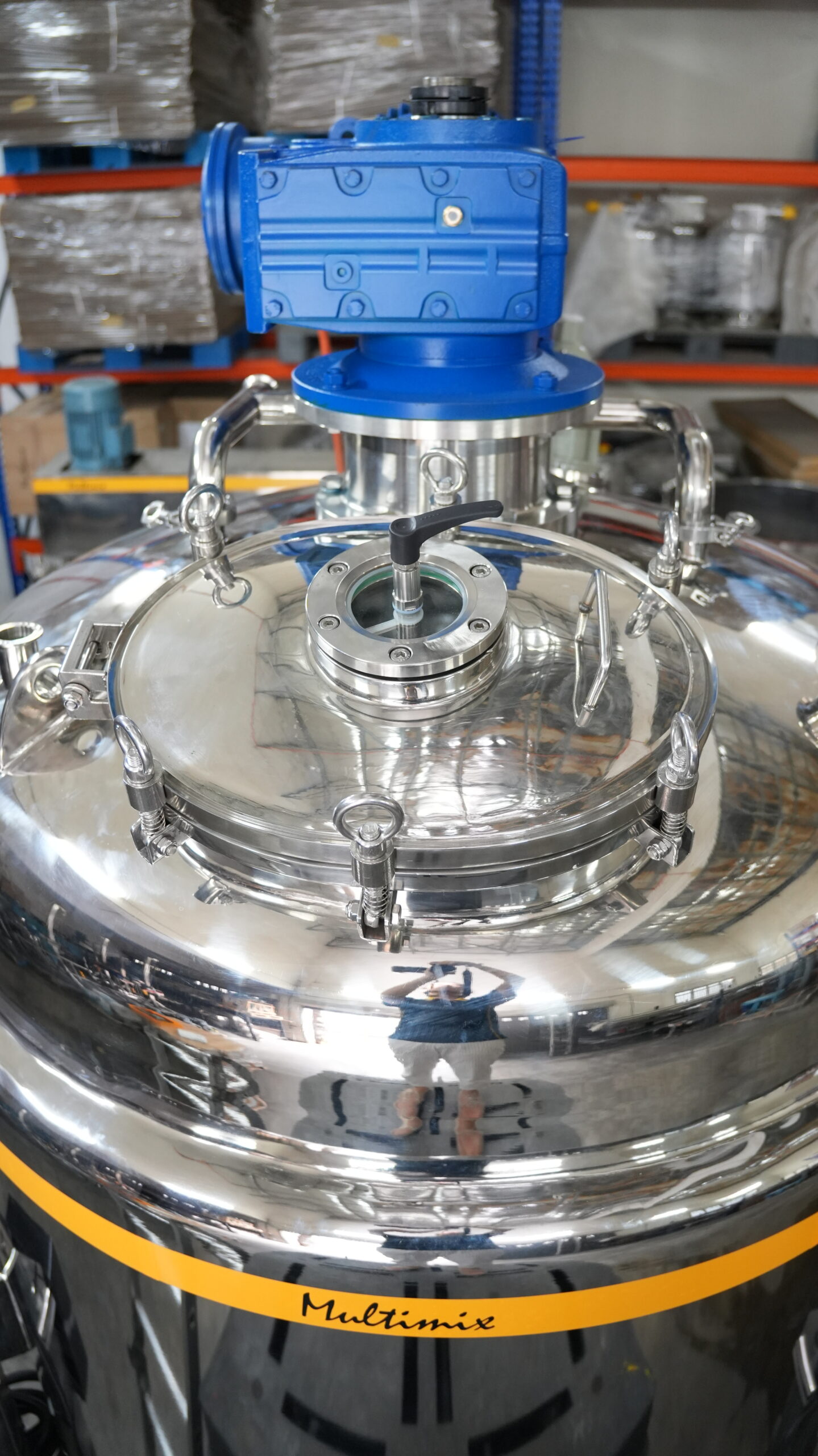

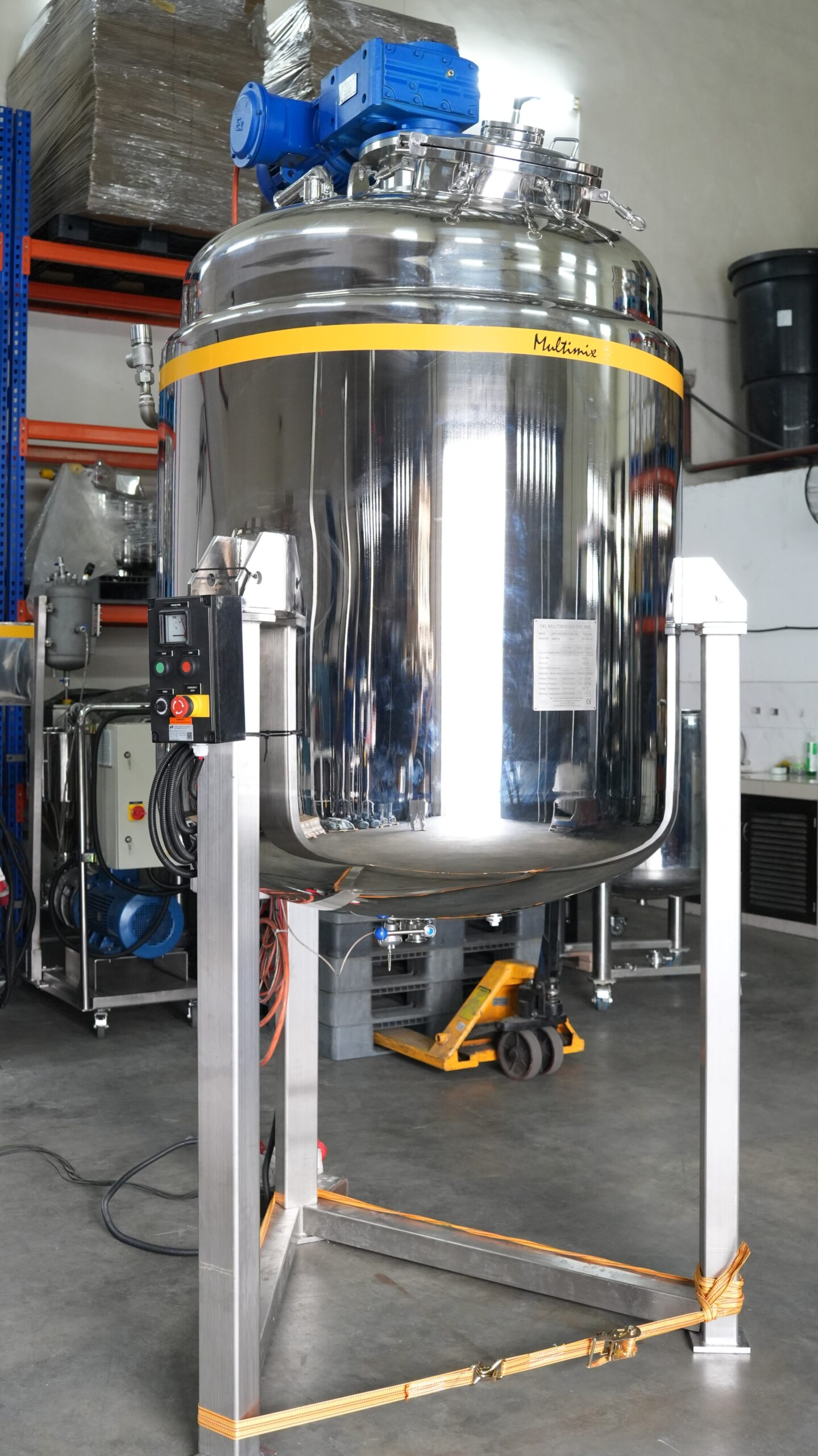

|Vessel||Single / Double (jacketed) for heating/cooling|
|Lifting system||Pneumatic / Hydraulic|
|Insulation material||Mineral wool|
|Heating medium||Hot water / Steam / Thermal Oil|
|Vacuum pressure||-600mmHg (0.8bars)|
|Machine/Vessel base||Static with forklift channels / Mobile with castor wheels|
|Explosion proof motor EEX D ll T4|
|Remote control station for ex-proof motor|
|Safety limit switch|
|Special seals, valves, pipings and fittings|

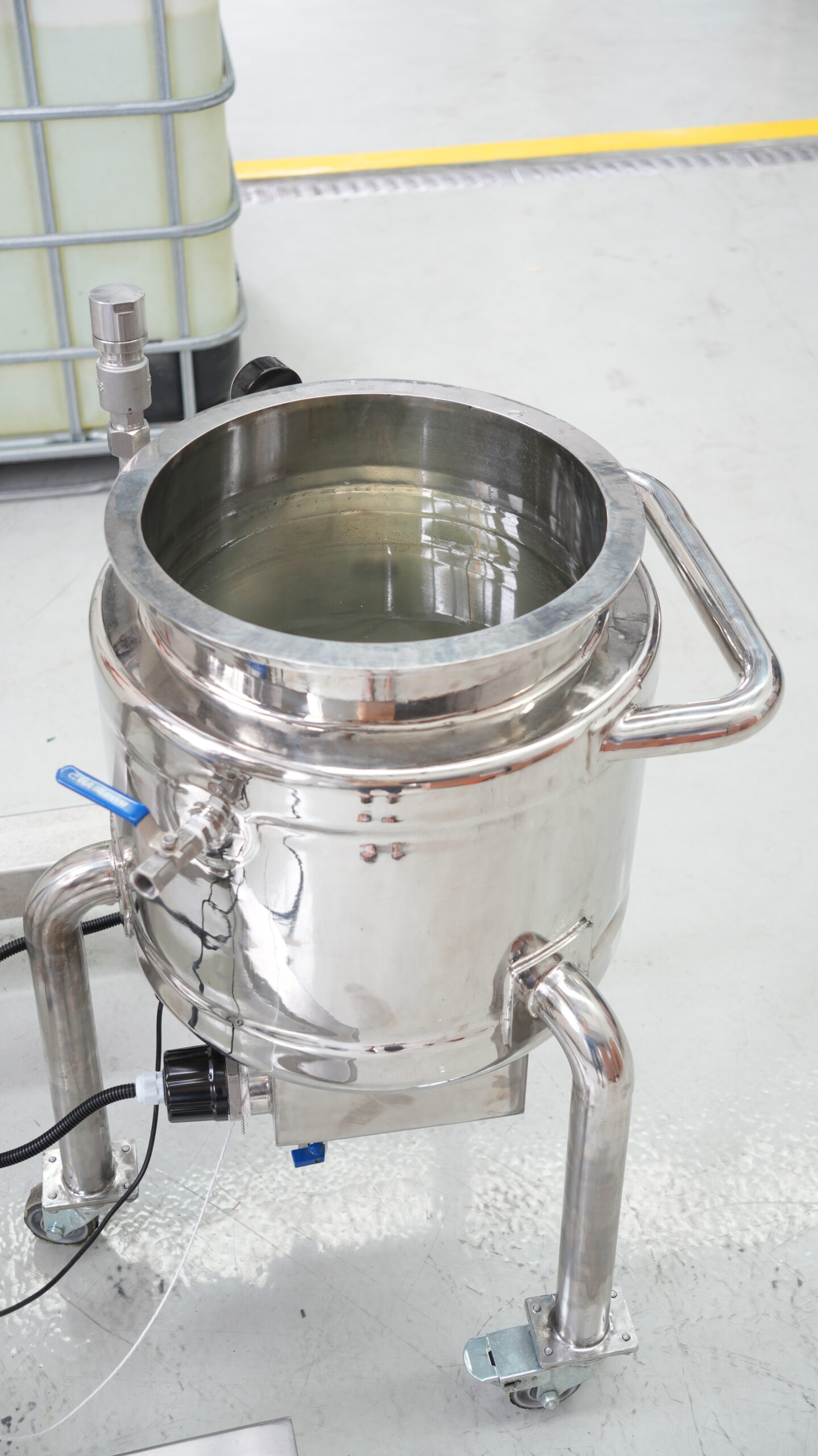

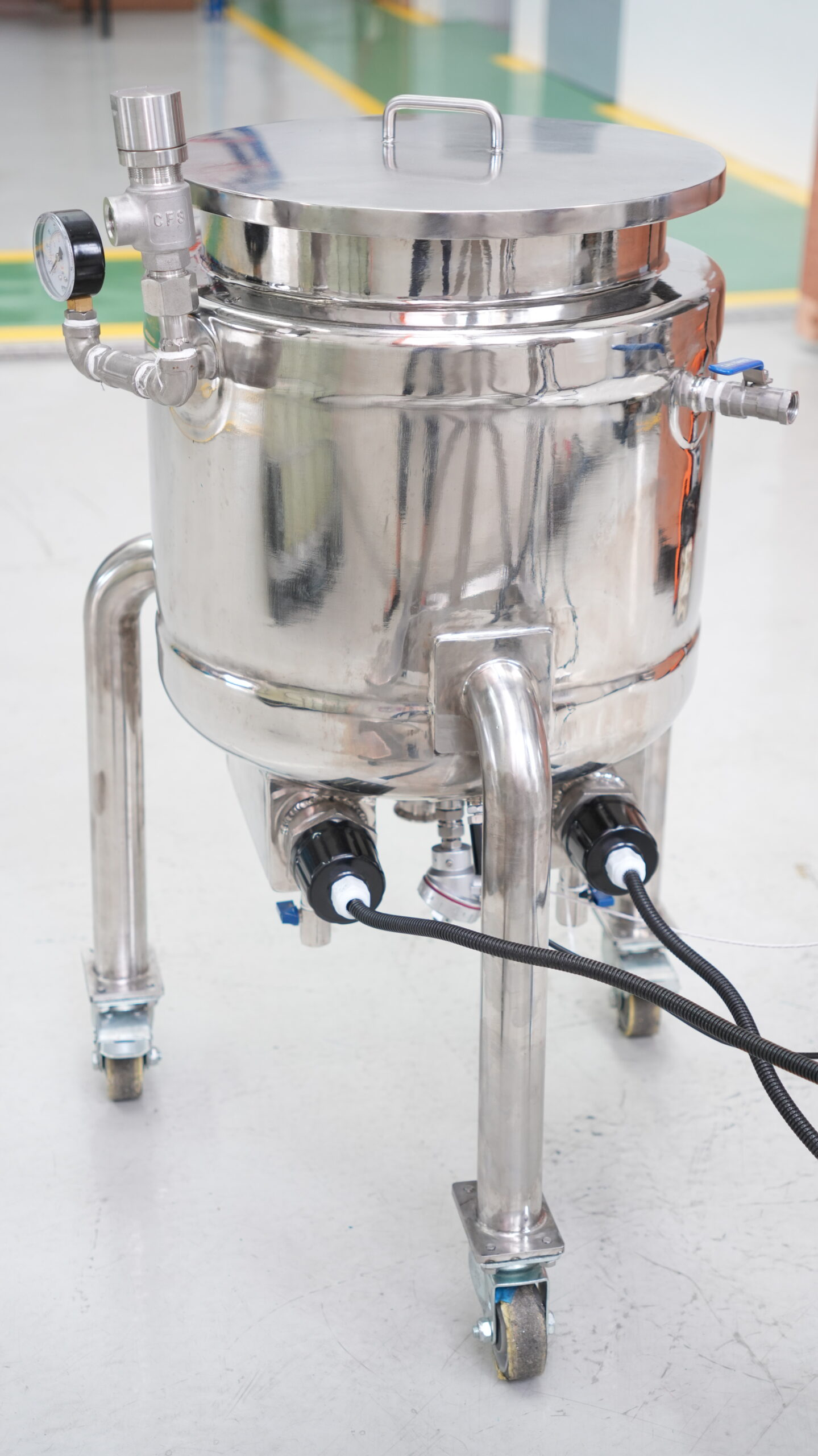

|Stainless steel mobile jacketed tank|
|CIP/SIP cleaning system|

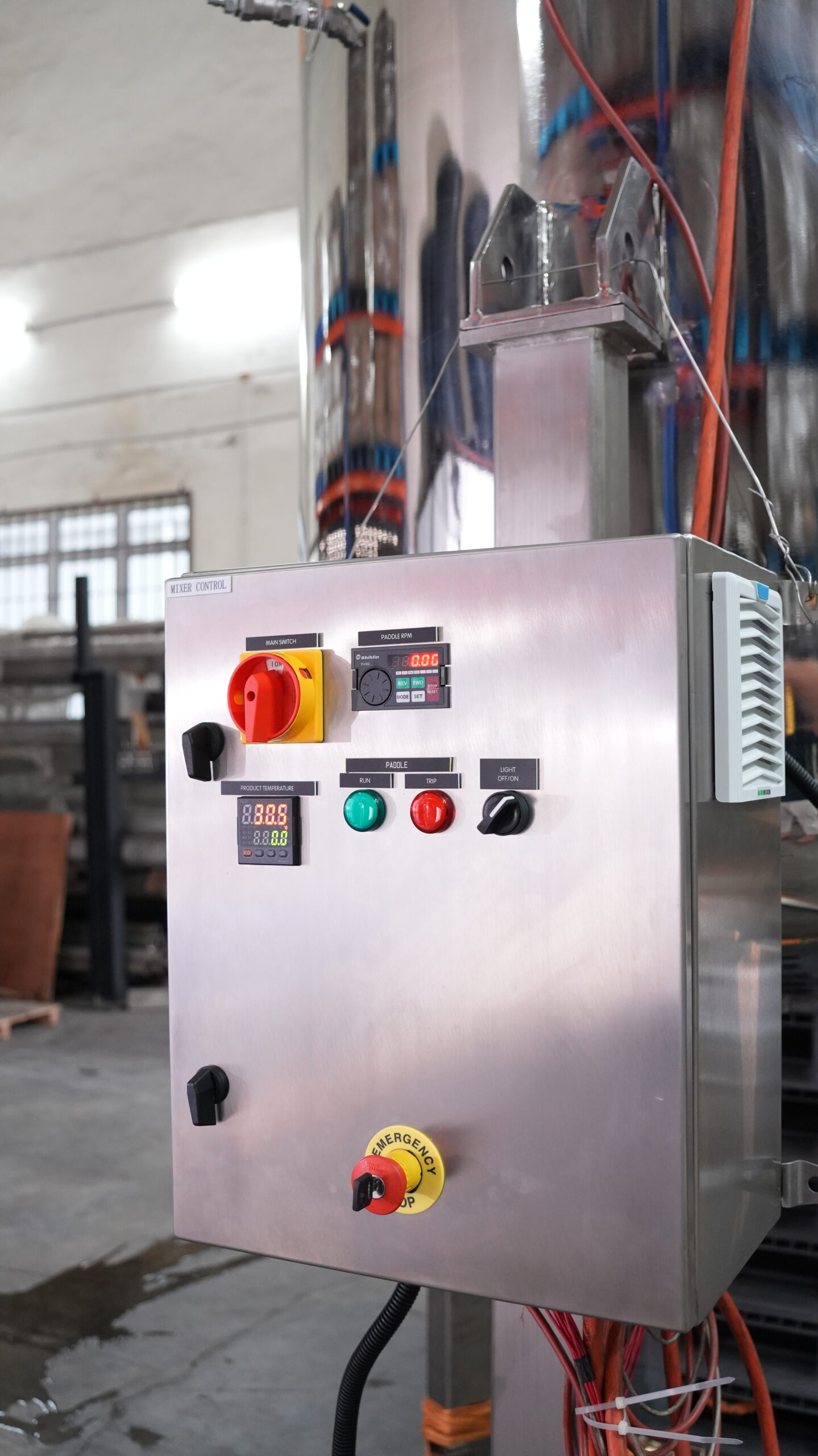

|Touch screen/PLC panel control|
WHY DSM MIXER TANK WITH TWO IMPELLERS SYSTEM?
A common mixing problem is the uniformity of blend especially in high viscous mixing. The lower speed anchor mixer needs to be able to continuously scrap the edge of the tank and feed products which are not yet dispersed or sheared well enough into the center for high speed dispersion or high shear mixing.
The combination of two mixing impellers in such design results in the best from both mixing technologies. It can be used for a great variety of vacuum mixing applications in almost all industries from processing of mayonnaise in food industry to cough syrup in pharmaceutical industries.
Moreover, Multimix® DSM Vacuum Mixer can also be combined with our inhouse developed Multimix® inline high shear mixer for more complex vacuum mixing requirements. (see DSM Vacuum Inline High Shear Mixing System)
HOW IT WORKS?

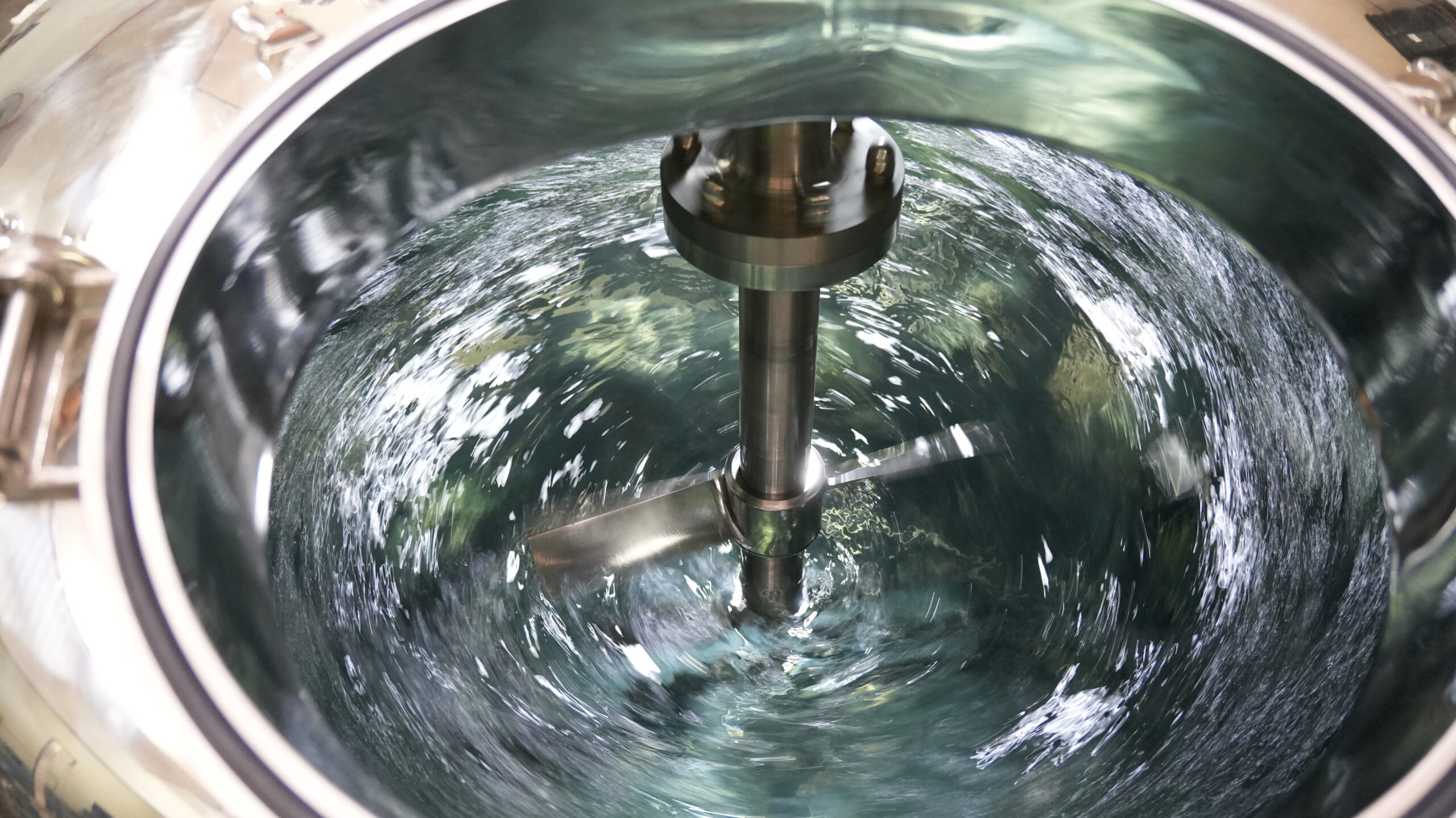

The anchor mixer is equipped with Teflon scrapers in order to remove materials from inner side of vessel/mixing tank and at the same time pushes the mixture back into the centre where high speed dispersing or high shearing action takes place.
Counter-rotating impellers at opposite direction promote a more uniform mix resulting in unparalleled homogenous product.
Suitable for many applications across industries as:
- Adhesive/sealants mixer
- Epoxy/PU mixer
- Wax and silicone emulsion mixer
- Paint, ink, pigments & coating mixer
- Chemicals mixer
- Edible oils mixer
- Latex compounds mixer
- Food and beverage mixer
