Explosion Proof Lab High Shear Mixer | Multimix

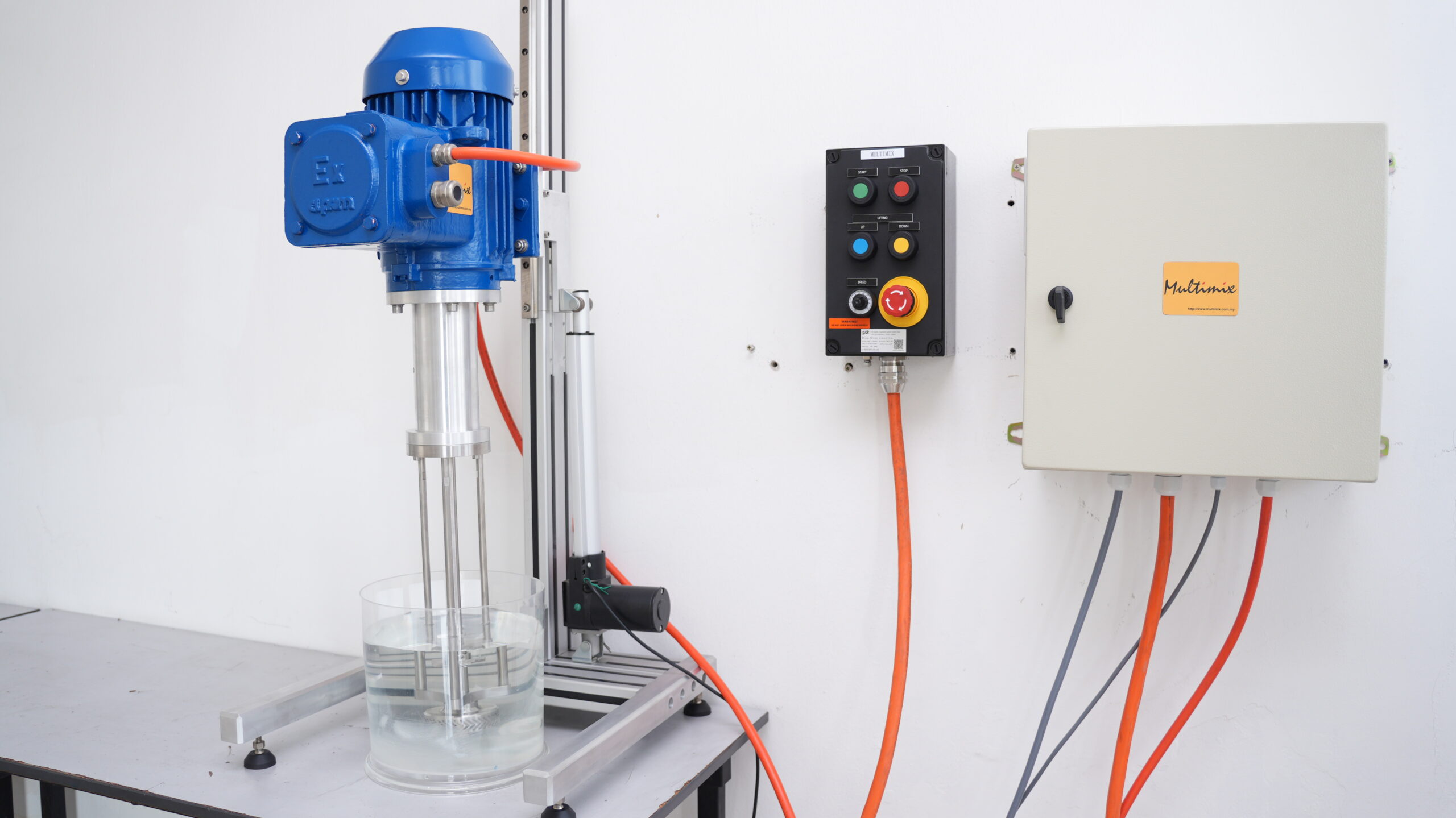

Explosion Proof Lab High Shear Mixer with remote panel and control stations | Multimix

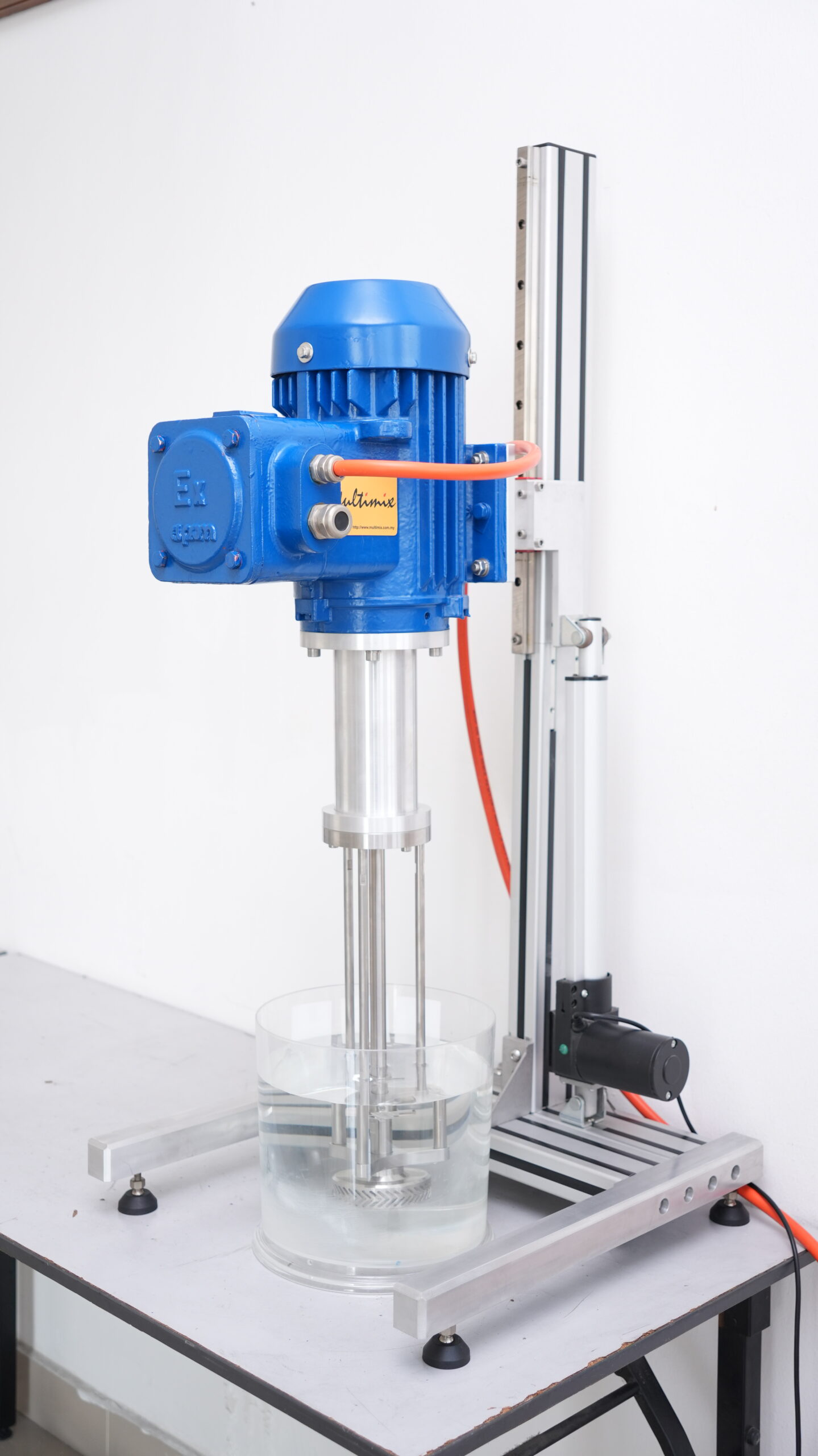

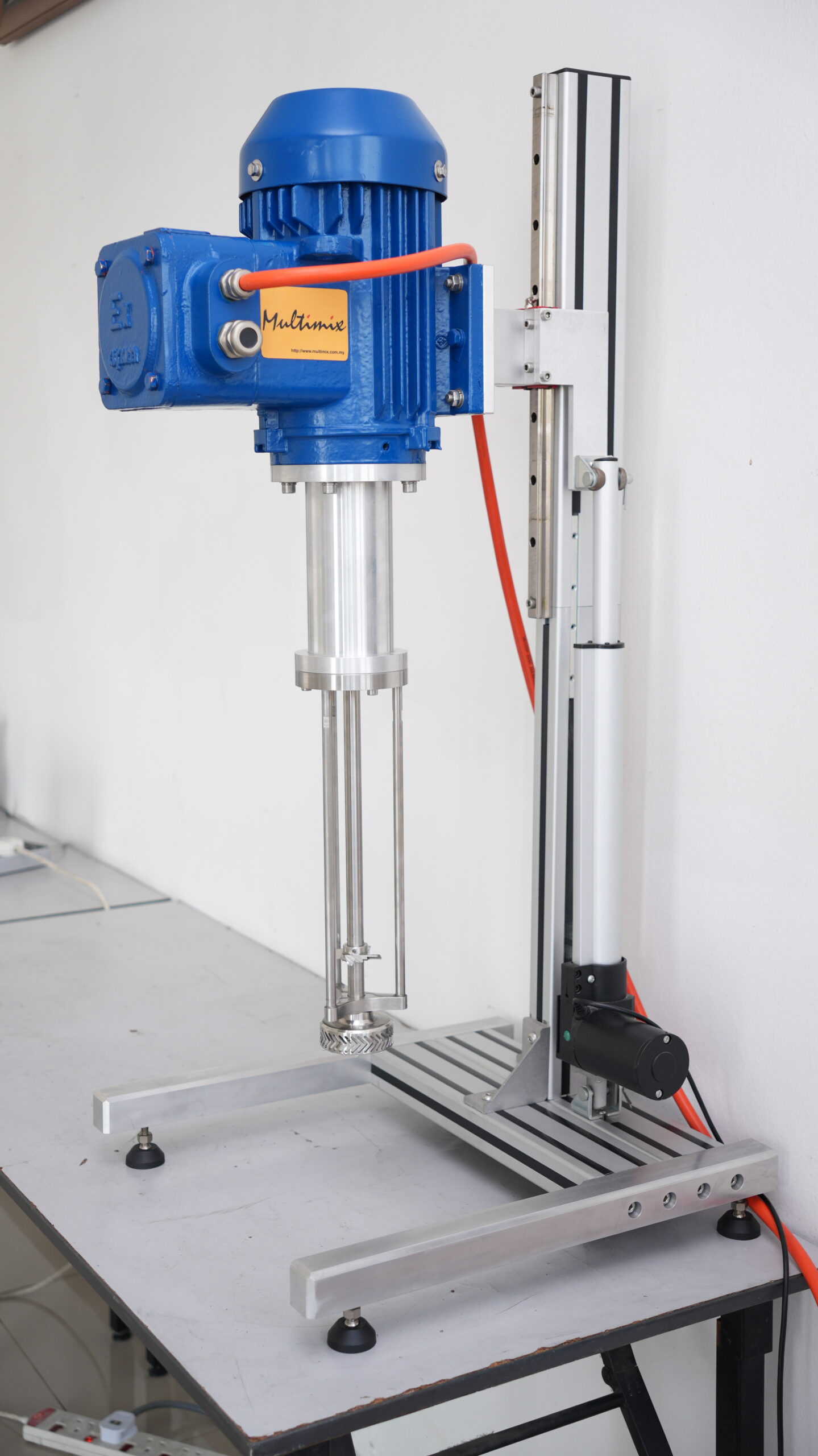

Multimix Explosion Proof (ATEX) High Shear Mixer

The Multimix® laboratory homogenizer (also known as laboratory high shear mixer) – HSM2103 and HSM2203 is also available in explosion proof version. They are capable of producing emulsion without separation, fish-eye and agglomerates with viscosity up to 10,000cps and comes with ATEX certified motor, remote control station and panel control.



Non-explosion version is also available also in  0.5 HP (HSM2003SV25/HSM2003) , 1HP (HSM2103) , 2HP (HSM2203) and for production-scale Batch High Shear Mixer or Vacuum High Shear Mixer.



Similar model of explosion-proof Multimix lab high speed disperser (HSD2103 EXD) is also available for dispersion of powder in liquid.



KEY BENEFITS:

  • Production of fine emulsion within minutes compared to conventional mixers
  • ATEX rated system provides utmost safety when used in hazardous mixing
  • Ease of use with electrical lifting for mixer workhead
  • Versatility with interchangeable attachments
Category: Tags: , , , , ,

Description

Product Specifications

Motor HSM2103 – 1HP Explosion Proof AC Motor ATEX rated II 2 G Ex d IIC T4 Gb, Zone 1

HSM2203 – 2HP Explosion Proof AC Motor ATEX rated II 2 G Ex d IIC T4 Gb, Zone 1
Power Supply Single phase, 110V/220V, 50/60Hz with orange Fire-Resistant Cabling
Mixing Impeller High shearing rotor/stator with patented “V” Design:

  • SINGLE  Vortex – 45mm/65mm
  • DOUBLE Vortex –  65mm
Speed Electronic variable speed inverter 0-6000 rpm
Material SS 316L wetted parts
Mixing Capacity 1 – 30 liter (H20)
Lifting by electrical lifting

Features

Product Video

Explosion Proof Lab High Shear Mixer with electrical lifting and fire resistant cabling – HSM2103 EXD
